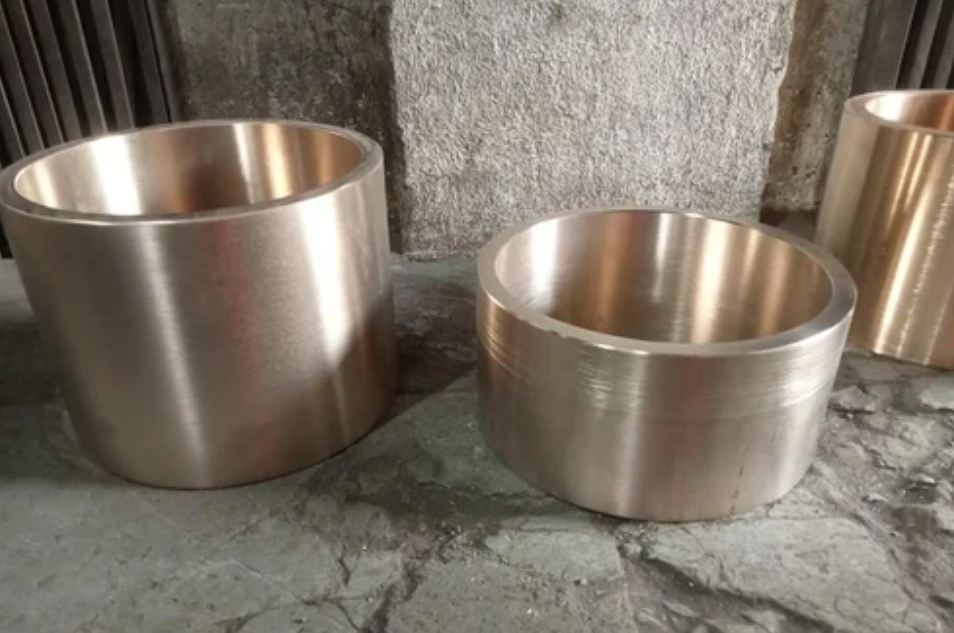

Phosphor Bronze Bushes are high-performance mechanical components designed to reduce friction, support rotating shafts, and ensure smooth movement between machine parts. Manufactured from premium phosphor bronze alloy, these bushes are widely used in heavy industrial machinery due to their exceptional strength, wear resistance, corrosion resistance, and long service life.
Phosphor bronze is a copper-based alloy that contains tin and a small percentage of phosphorus. This unique combination improves the metal’s strength, hardness, and resistance to fatigue and wear. Because of these superior properties, phosphor bronze bushes are commonly used in high-load and high-speed applications where reliability and durability are essential.
Industries such as automotive, marine, electrical engineering, steel plants, mining, power generation, and heavy machinery manufacturing rely on Phosphor Bronze Bushes to ensure efficient machine performance and reduced maintenance costs.
What are Phosphor Bronze Bushes?
Phosphor Bronze Bushes are cylindrical bearing components designed to support rotating or sliding shafts within machines. They function as a protective sleeve between the shaft and the housing, minimizing friction and preventing metal-to-metal contact.
These bushes are typically manufactured using phosphor bronze alloys containing copper, tin, and phosphorus. The addition of phosphorus significantly improves wear resistance and increases the material's stiffness, making it ideal for precision engineering applications.
Phosphor Bronze Bushes are known for their excellent anti-friction properties, which help maintain smooth machine operation even under heavy loads and continuous use.
Key Features of Phosphor Bronze Bushes
Excellent Wear Resistance
Phosphor bronze is highly resistant to abrasion and wear, allowing bushes to perform efficiently even in high-friction applications.
High Strength and Durability
The combination of copper and tin provides excellent mechanical strength, enabling these bushes to withstand heavy loads and harsh operating conditions.
Superior Corrosion Resistance
Phosphor bronze bushes offer excellent resistance to corrosion, especially in humid, chemical, and marine environments.
Low Friction Performance
The alloy provides excellent anti-friction characteristics, ensuring smooth movement between machine components.
Good Fatigue Resistance
Phosphor bronze bushes are capable of withstanding repeated stress cycles without cracking or failure, making them ideal for high-speed rotating machinery.
Excellent Machinability
These bushes can be machined with high precision to meet exact industrial specifications and tolerances.
Chemical Composition of Phosphor Bronze
Phosphor bronze bushes are manufactured using alloys containing the following elements:
Copper (Cu) – Base metal providing strength and conductivity
Tin (Sn) – Improves strength, hardness, and corrosion resistance
Phosphorus (P) – Enhances wear resistance and stiffness
Lead (optional) – Improves machinability in some grades
The exact composition may vary depending on the required grade and application.
Manufacturing Process of Phosphor Bronze Bushes
The production of phosphor bronze bushes involves advanced manufacturing processes to ensure high strength and durability.
Raw Material Selection
High-quality copper, tin, and phosphorus are selected to produce the required phosphor bronze alloy.
Melting and Alloying
The metals are melted in induction furnaces where precise temperature control ensures uniform alloy formation.
Casting Process
The molten alloy is cast using methods such as:
Centrifugal casting
Continuous casting
Sand casting
These methods ensure high-density and defect-free bushings.
Cooling and Solidification
The molten metal solidifies into a strong and durable structure with uniform grain distribution.
Machining and Finishing
After casting, the bushes undergo precision machining to achieve accurate inner and outer diameters and smooth surface finishes.
Quality Inspection
Each bush undergoes strict quality control checks including:
Chemical composition testing
Hardness testing
Dimensional accuracy inspection
Ultrasonic testing
Types of Phosphor Bronze Bushes
Plain Phosphor Bronze Bushes
These are simple cylindrical bushes used for general industrial applications.
Flanged Phosphor Bronze Bushes
Flanged bushes include a flange on one side to help maintain alignment and prevent axial movement.
Grooved Phosphor Bronze Bushes
These bushes contain lubrication grooves that allow better oil distribution and reduce friction.
Custom Phosphor Bronze Bushes
Manufacturers also produce custom bushes according to specific dimensions and design requirements.
Applications of Phosphor Bronze Bushes
Due to their excellent mechanical properties, phosphor bronze bushes are widely used in various industries.
Automotive Industry
In the automotive sector, these bushes are used in:
Gear systems
Suspension components
Steering mechanisms
Engine parts
Marine Industry
Phosphor bronze bushes are ideal for marine applications due to their corrosion resistance.
Common uses include:
Ship bearings
Marine pumps
Propeller shaft bushes
Electrical Industry
Because phosphor bronze has good electrical conductivity, it is used in electrical equipment such as connectors, switches, and relays.
Steel and Heavy Machinery
Phosphor bronze bushes are commonly used in:
Rolling mills
Industrial presses
Heavy-duty gear assemblies
Mining and Construction Equipment
Mining machinery operates under harsh conditions, making phosphor bronze bushes an ideal choice for durability and reliability.
Advantages of Phosphor Bronze Bushes
Phosphor bronze bushes provide several advantages compared to other bearing materials.
Long Service Life
Their excellent wear resistance significantly increases operational lifespan.
Reduced Maintenance
The durability of the alloy reduces the need for frequent replacement.
Smooth Machine Operation
Low friction properties improve machine efficiency and reduce energy loss.
High Load Capacity
They can support heavy loads without deformation.
Resistance to Harsh Environments
They perform well in humid, marine, and chemical environments.
Quality Standards
Phosphor Bronze Bushes are manufactured according to various international standards to ensure quality and reliability.
Common standards include:
ASTM B505
ASTM B139
BS 1400 PB1, PB2
DIN Phosphor Bronze Grades
IS Standards for Copper Alloys
These standards guarantee consistent material quality and mechanical performance.
Custom Manufacturing Options
Manufacturers offer customized phosphor bronze bushes to meet specific industrial needs. Customization options include:
Different phosphor bronze grades
Custom dimensions and tolerances
Lubrication grooves and oil holes
Precision machining and finishing
Heat treatment for improved hardness
These options allow industries to obtain bushes perfectly suited for their machinery and operational requirements.
Conclusion
Phosphor Bronze Bushes are reliable and durable components used to reduce friction and support rotating shafts in industrial machinery. Their excellent wear resistance, corrosion resistance, and mechanical strength make them an ideal choice for demanding applications across multiple industries.
From automotive and marine engineering to mining, power generation, and heavy machinery, Phosphor Bronze Bushes provide long-lasting performance and ensure smooth machine operation. Their ability to withstand heavy loads, high speeds, and harsh environments makes them one of the most preferred bearing solutions in modern engineering applications.
